What is a 4G Mobile DVR? How much does it cost?
What is a 4G mobile DVR?

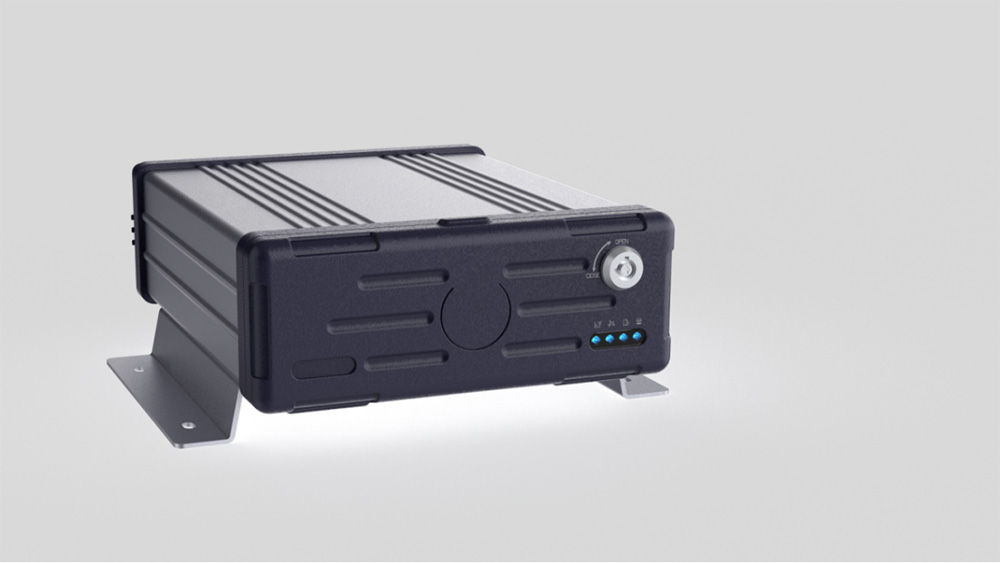

A 4G mobile DVR is a vehicle-mounted hard disk video recording device with 4G communication transmission capability. The 4G transmission enables the DVR to carry clearer onboard monitoring cameras and achieve 1080p ultra-clear video recording. "4G" typically refers to the device's support for 4G network connections, allowing remote real-time viewing and management of vehicle monitoring screens, as well as alarm and warning functions.
How much does a 4G mobile DVR cost?
The YUWEI standard 4G Mobile DVR costs $125 and features global 4G wireless transmission, WIFI communication, DVR functionality, and BDS/GPS dual-mode positioning. It supports advanced monitoring functions such as ADAS (Advanced Driving Assistance System), BSD (Blind Spot Detection), DSM (Driver Status Monitoring), passenger status, cabin loading, cargo conditions, etc. This ensures a high level of intelligent monitoring and enhances overall safety.
4G mobile DVR specifications:
Item | Detailed Specification |
Appearance structure | Size: 145×58×193mm Shell material: PC+ABS, body material: aluminum alloy |
Protection grade | IP54 |
Environmental suitability | Operating temperature: -30℃～70℃, Storage temperature: -40℃～85℃ |
Working voltage | Working voltage range: 9 - 32V |
Support car battery protection: 8.5V±0.5V/12V system, 17V±0.5V/24V system | |
12V/24V adaptive，36V system is not supported | |
Ultra-low power consumption design | Static current <2mA Support zero- power-consumption sleep mode |
Power consumption | Average power consumption is less than 30W |
Super capacitor | 3 super capacitors can supply power to the system and camera |
2~3s to save the complete video before power failure | |
Indicator lights | 4 lights (1 positioning signal, 1 communication signal, 1 video recording, 1 terminal operation indication) |
External interface | Power supply: TE-1318384-2 |
Positioning antenna connector: Fakra-C blue | |
Communication antenna connector: Fakra-D | |
Video interface: M12-4 | |
IPC interface: M12-6 | |
Video | Maximum 6 channels of AHD/CVBS video input, can supply power to the camera, the output voltage value is 12V, single channel maximum output current 0.5A |
1-channel IPC video input connector, 12V power supply | |
1-channel CVBS output | |
Audio | 2-way camera recording, recording line supports key input detection |
1 way shout MIC input | |
Storage | 2.5-inch mechanical / solid state hard disk, can support 7mm / 9.5mm, hard disk shock absorption device fixed in the terminal (Maximum capacity support 2TB) |
2 SD cards, pluggable mode, does not support simultaneous recording (Maximum capacity support 512GB) | |
Data interface | 2-way RS232 interface, 5V power supply @ 500mA |
1-way 485 interface, 1 way IPC interface, 12V power output (1A) | |
Positioning module | GPS and BeiDou positioning module |
Communication module | 4G module |
SIM card | Drawer plug-in SIM card |
IO function | 8-channel input: ACC, left steering, right steering, door edge, emergency, reverse, brake, speed pulse |
1 way output: fuel break power |
4G mobile DVR features:
This vehicle-mounted hard disk recorder has the following features and functions:
1. The technical core has an internationally leading visual recognition algorithm engine that is accurate and reliable, used in danger driving warning systems and driver status monitoring systems.
2. Supports intelligent monitoring functions, including ADAS (Advanced Driving Assistance System), BSD (Blind Spot Detection), and DSM (Driver Behavior Safety Warning), which can monitor passenger status, cabin loading status, and cargo status, etc.
3. Supports network remote upgrade programs, allowing software and functions to be updated remotely over the network.
4. Supports GPS/Beidou satellite real-time positioning, enabling accurate acquisition of vehicle location information.
5. Provides 6-channel analog video input, including 2-channel 1080P HD video, 2-channel audio input, 1-channel IPC input, and 1-channel CVBS output, achieving comprehensive audio and video intelligent monitoring and recording.
6. Data storage supports hard disk storage and SD card storage, ensuring data security through dual storage.
7. The device has a hard disk shock protection mechanism, which can effectively prevent damage to the hard disk caused by vibration.
8. Built-in protection memory provides additional data protection and backup functions.
9. Supports UPR (Uninterruptible Power Supply Recording) function, ensuring that video data is not lost in the event of a power outage.
10. Has low voltage protection function to protect the safe use of vehicle batteries.
11. The device has a patented storage medium protection device to prevent illegal disassembly of the hard disk and SD card.
12. Supports the next-generation video standard H265, providing more efficient video compression and storage.
13. Adopts a single-board design with high integration and high reliability.
14. Uses a unique streaming media file system storage method to ensure data security and prevent tampering.
What types of fleets are suitable for 4G mobile DVR?
4G mobile DVR can be used for tracking and monitoring management of fleets such as trucks, buses, taxis, school buses, and dump trucks. It can be paired with a software system backend, allowing managers to remotely view the status of the fleet. It supports remote operations (such as remote vehicle lock).
